Turbidity Reduction in Pulp and Paper Industry

The pulp and paper industry transforms lignocellulosic raw materials into a dazzling spectrum of packaging grades, tissue, writing papers and specialty boards. Throughout this sequence of debarking, chipping, cooking, bleaching, stock preparation and sheet forming, enormous volumes of process water are used as a transport medium, a heat-transfer fluid, a washing agent and a critical ingredient in finished sheet quality. Wood fibers shed fines, colloidal pitch, lignin fragments and dissolved organic matter that cloud every recycle loop. If unchecked, the resulting haze elevates turbidity, a measure of suspended and colloidal particles that scatter light and undermine both product brightness and equipment reliability. Operators recognise that high-turbidity backwater loads deposit sticky scale on Fourdrinier fabrics, plug shower nozzles, overwhelm DAF clarifiers and consume costly retention aids. Consequently, sophisticated turbidity reduction strategies have become a cornerstone of competitive mill operation, aligning sustainability commitments with production targets.

In modern integrated mills, water circuits are ever tighter to save energy, reduce effluent fees and satisfy corporate ESG metrics. Closed-loop operation magnifies the challenge because dissolved and suspended solids recycle many times, creating a positive feedback loop that can explode into chronic turbidity excursions after just a minor upset. Chemical oxygen demand (COD) rises, microbial counts proliferate and the secondary treatment plant faces shock loads. Turbidity reduction, therefore, is not a single unit operation but a plant-wide philosophy combining primary clarification, media filtration, membrane polishing and smart dosage control. By attacking particulate problems at multiple nodes – chip washer effluent, bleach plant filtrates, paper-machine whitewater and final discharge – mills secure stable headbox consistency, extend felt life and slash downtime due to sheet breaks. The financial benefit is tangible: fewer reject rolls, lower biocide consumption and improved heat-exchanger performance translate into millions of dollars annually. Stakeholders increasingly view turbidity control as a competitive differentiator rather than a compliance cost.

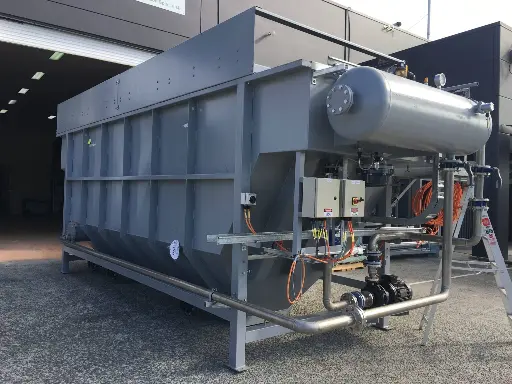

These technologies operate synergistically. DAF manages coarse fibres, multimedia filters trap micron-scale fines, UF eliminates colloids, and AOP degrades invisible precursors that could later precipitate. Inline coagulation acts as a universal enhancer, fine-tuning zeta potential across the network. By layering physical, chemical and oxidative barriers, mills build resilience against feed variability, seasonal resin spikes and pulping grade changes. Integrated control logic shares turbidity sensor data so each stage self-optimises, preserving hydraulic capacity and reducing overall specific energy consumption.

Key Water-Quality Parameters Monitored

Mill water chemists track a multifaceted dashboard to ensure turbidity reduction goals translate into tangible operational gains and regulatory compliance. Turbidity, measured in Nephelometric Turbidity Units (NTU), remains the headline metric because it directly correlates with suspended solids loading. Yet other parameters interact with turbidity in subtle ways. Total Organic Carbon (TOC) indicates dissolved pitch that can coagulate into light-scattering clusters under pH swings. Conductivity serves as a proxy for ionic strength; high values compress the electrical double layer surrounding fibres, destabilising colloids and potentially increasing apparent turbidity. Oxidation-Reduction Potential (ORP) reveals microbial activity that can glue fibres together into mats. pH controls aluminium speciation when acid alum is used as a coagulant, hence pH drift can swing turbidity upward even when polymer dosage is unchanged.

Papermakers also monitor colour, chemical oxygen demand and calcium hardness because each influences deposit potential on vacuum filter drums and heat-exchanger plates. Data historians illustrate daily cycles: condensate returns at shift changes often carry hot, low-pH slugs that momentarily strip protective coatings from stainless pipelines, releasing iron that stains stock circuits. Operators therefore review parameter trends, not isolated snapshots, to identify root causes of turbidity spikes. Target values vary with paper grade but mills striving for near-zero-effluent operation typically hold clarified process water below 2 NTU, TOC under 20 mg L-1 and conductivity around 1 500 µS cm-1. Meeting these targets stabilises retention aid performance, yields smoother sheet formation and lowers load on biological treatment.

Design & Implementation Considerations

Project engineers charged with deploying a turbidity reduction train begin by mapping water balances across chip yard, utility island, fibre line and paper machines. They calculate peak and average flows, solid loads and temperature envelopes using mass-balance modelling tools like WinGEMS. Sizing of DAF units follows a solids surface loading rate of 20–25 kg m-2 h-1, while multimedia filters use a hydraulic loading of 8–12 m h-1. UF skid designers apply flux rates of 60–80 L m-2 h-1 and incorporate 20 % redundancy for membrane ageing. Materials selection prioritises 316L stainless in hot filtrate sections and fibre-reinforced plastic housings for corrosive bleaching filtrates. All gaskets are EPDM or PTFE to withstand pH 2–11 excursions common during acid cleaning cycles.

Piping and Instrumentation Diagrams (P&IDs) should display high-resolution turbidity meters at each stage, differential pressure transmitters across filters, and clean-in-place (CIP) loops with conductivity-based rinse end-points. Automation systems integrate PLC-based interlocks that prevent polymer addition when flow falls below the minimum mixing velocity, thus averting overdosing sludge blinding events. International standards guide each discipline: ISO 22000 verifies hygienic water reuse for food-grade board, WHO guidelines inform chemical safety, FDA 21 CFR 176.170 governs food contact for process chemicals, and NSF/ANSI 61 certifies membrane materials. Mills seeking carbon neutrality add variable-frequency drives (VFDs) on recycle pumps and recover heat from UF retentate purge via plate heat exchangers, cutting steam demand by up to 5 %.

Plant designers increasingly deploy digital twins that simulate turbidity behaviour as flow, pulp grade or furnish brightness change. These twins accept live OPC-UA data, comparing predicted versus actual NTU and recommending coagulant dose adjustments in real time. The approach boosts first-pass catch ratio and shortens commissioning curves. Augmented reality head-sets overlay P&ID tags on field equipment, accelerating loop checks and operator training. Cyber-security hardening follows ISA/IEC 62443, ensuring that remote optimisation does not expose critical mill networks.

Operation & Maintenance

Sustaining low turbidity hinges on disciplined preventive maintenance (PM) plans that anticipate fouling before it escalates. DAF skimmers require weekly inspection to clear calcium-rosin encrustations that impede froth flow. Filter backwash sequences trigger when head loss rises 0.7 bar above baseline, ensuring media resettles evenly and preventing mud-ball formation. UF membranes undergo CIP every 30–45 days, alternating alkaline surfactant, chelant-acid and oxidative soaks; normalised permeability data guide chemical choice. Membrane replacement cycles stretch to seven years when differential pressure is monitored closely and feed water pre-chlorination relaxes biofouling pressure.

Spare-parts strategy involves dual sourcing of rotor dewatering pumps, polymer make-down augers and turbidity sensors with plug-and-play transmitters. Critical spares are held on-site; non-critical parts leverage supplier consignment programmes linked to SAP preventative maintenance modules. Operators must understand zeta potential theory, Jar testing and PID tuning to adjust polymer feed versus flow swings. Mill training matrices reference TAPPI TIP 0404-63 for water treatment lab skills and ISO 18436 for condition monitoring competencies. Remote diagnostics via 4G gateways allow OEM technicians to troubleshoot trans-membrane pressure spikes within hours, reducing mean time to repair by 40 %.

Energy efficiency is maintained by tracking specific kWh per cubic metre treated. DAF air-sat systems run on dissolved-oxygen setpoints rather than fixed recycle ratio, trimming blower runtimes. Solar-powered variable-speed drives harvest roof space to offset CIP pump energy. Process engineers also monitor chemical intensity (kg chemical per tonne paper) to benchmark across sister mills, feeding data into corporate CSR dashboards. Low-turbidity water downstream boosts boiler feed condensate quality, cutting deaerator blowdown and saving natural gas.

Challenges & Solutions

Unexpected scaling remains a top threat. Hardwood species exude calcium oxalate which precipitates onto media grains, forming a cementitious layer. Periodic acid shocks using citric or formic acid dissolve the crust, while upstream lime kiln optimisation reduces soluble calcium in the first place. Bio-fouling is another menace, particularly during warm months when whitewater circuits reach 45 °C. Mills adopt monochloramine programmes combined with boosted convective shear in pipe loops; continuous ATP monitoring alerts operators before slime thickens.

Regulatory hurdles tighten every year as discharge permits shrink. When local authorities shifted daily NTU limits to rolling four-hour averages, one mill added a side-stream UF unit to shave peaks; another installed real-time cloud reporting to demonstrate compliance and avoid fines. Finally, polymer price volatility stresses budgets. Adopting AI-driven dosage optimisation cuts consumption by up to 18 %, buffering OPEX against commodity spikes and decreasing sludge production that would otherwise inflate disposal costs. Overall, proactive monitoring, data analytics and closed-loop control transform each challenge into an opportunity for systemic resilience.

Advantages & Disadvantages

Process engineers debating investment in comprehensive turbidity reduction appreciate a balanced perspective. Initial capital outlay may seem steep, yet payback periods often shrink once hidden costs of sheet breaks, pump wear and effluent surcharges are tabulated. Integrated treatment trains also unlock water reuse pathways, trimming freshwater abstraction fees and enhancing corporate reputation for sustainable stewardship. Nevertheless, complexity rises with every added barrier, demanding skilled staff and rigorous maintenance to avoid cascading failures. Chemical demand can increase sludge volumes, pressing dewatering assets harder, and severe shock loads can still force bypass events. Understanding these trade-offs ensures stakeholder alignment and realistic expectations.

Frequently Asked Questions

Q1. How low should turbidity be before water is reused on the paper machine?

A1. Most mills target below 2 NTU for shower applications and sub-1 NTU for critical dilution points like bleach plant extraction. Lower values improve felt life and sheet formation.

Q2. Can I retrofit ultrafiltration into an existing clarifier line?

A2. Yes. UF modules often install as a modular skid downstream of multimedia filters; ensure adequate feed pump head and integrate bypass for CIP events to avoid production interruptions.

Q3. Does ozone-UV oxidation raise operating costs significantly?

A3. Energy use is moderate, roughly 0.1–0.3 kWh m-3. Savings from colour and odour removal plus reduced polymer dosage typically compensate within two years.

Q4. How do closed loops affect turbidity control?

A4. Closed loops concentrate fines and dissolved organics, raising base-line turbidity. Introduce slip streams to treatment or increase filtration frequency to maintain stability.

Q5. What sensor maintenance is required for inline turbidity meters?

A5. Clean optical windows weekly with non-abrasive cloths, check calibration monthly using formazin or ISO 7027 standard solutions and replace desiccant packs in electronics yearly.

Q6. Which international standard is most relevant for food-contact board mills?

A6. FDA 21 CFR 176.170 governs indirect additives in paper and paperboard for food packaging; compliance ensures all treatment chemicals have suitable approvals.

Q7. How can digitisation improve turbidity reduction?

A7. Digital twins and AI-driven dosage control cut chemical use and predict fouling. Cloud dashboards visualise trend anomalies, letting teams intervene before objectives are breached.
