Diffusion Furnace Humidification

In semiconductor fabrication, diffusion furnaces operate at elevated temperatures where dopant gases and oxidants diffuse into silicon wafers to form junctions or grow dielectric layers. To control oxidation rates and prevent crystal defects, manufacturers often enrich the carrier gas with ultrapure water vapour. This practice, known in the industry as humidifying the diffusion furnace environment with ultrapure steam, introduces a controlled amount of moisture into a hot nitrogen or argon stream. It is far from a simple boiling process. Operators tune the dew point with precision instrumentation because too little humidity slows oxide growth while too much encourages condensation and particulate formation. Engineers design humidification systems to convert high‑purity water into fine droplets or vapour that mix completely before entering the quartz process tube. Contamination at this stage threatens device yields because high temperatures will precipitate any dissolved mineral salts or metal ions as “snow” on wafer surfaces, creating micro‑defects. For this reason, only water treated to microelectronics standards is permitted. The diffusion furnace must remain sealed and inert, so injection is typically through a mass‑flow‑controlled needle or aerosol generator that mixes with the sweeping nitrogen. The introduction of steam allows uniform oxide growth on thousands of wafers at once by creating a thin film of water on the silicon surface, which reacts to form high‑quality silicon dioxide. Uniformity across the furnace depends on constant moisture content, absence of contaminants, stable furnace temperature and correct gas velocities. The humidification subsystem therefore becomes integral to the entire thermal process, influencing device performance and long‑term reliability.

Beyond the chemical reaction itself, the business value of precise humidification relates to yield and throughput. Semiconductor fabs invest millions in each furnace; any downtime or yield loss has an amplified cost. A proper humidification system reduces processing time by promoting fast, uniform oxidation and eliminates rework due to defective oxide layers. Without it, wafers may develop non‑uniform oxide thickness, leading to threshold voltage variations in transistors or lower breakdown voltages in capacitors. Water treatment intervenes at the very beginning by producing feed water of the required quality. Typically, ultrapure water loops supply the humidifier, but additional polishing – such as membrane degassing or vacuum distillation – ensures near‑zero total dissolved solids. Although dry oxidation is used for gate oxide growth on very thin oxides, the majority of field oxides and isolation structures rely on steam oxidation. Clean steam also reduces furnace tube contamination because it does not carry metal ions or particles. In addition, humidification systems allow doping gases like HCl to react more predictably by stabilising the surface chemistry. Engineers must balance the cost of sophisticated water treatment and humidification hardware against the improved yields and process control. Ultimately, diffusion furnace humidification underscores how a water utility can become a strategic asset in microelectronics manufacturing, connecting chemical engineering, materials science and quality control in a single high‑impact unit operation.

These technologies work together to deliver consistently high‑purity water that can be converted to clean steam or humidified nitrogen without introducing contaminants. Reverse osmosis removes the bulk of dissolved solids; CEDI and ion exchange polish the permeate to achieve megohm‑class resistivity; ultrafiltration and UV oxidation attack colloids and organics; and degassing membranes strip gases that would otherwise lower resistivity or contribute to corrosion. Distillation provides an ultimate safeguard when process requirements approach the theoretical limits of purity. Selection of systems depends on the facility’s existing ultrapure water infrastructure, required dew point stability and reliability goals. In many cases, modular skid‑mounted units are integrated into the humidification loop to maintain continuous production. The combination of these units allows semiconductor manufacturers to meet stringent standards and ensure that every water droplet entering a diffusion furnace supports yield, not defects.

Key Water‑Quality Parameters Monitored

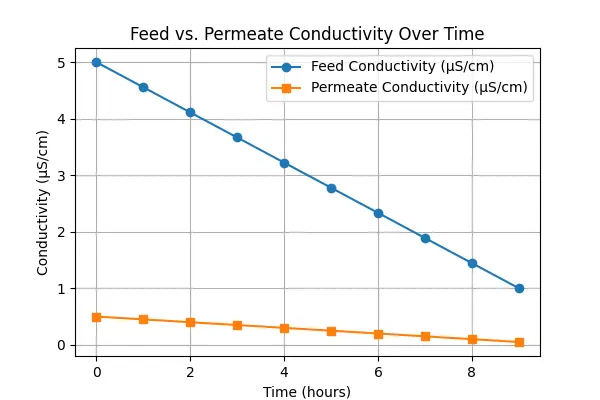

Monitoring water quality for diffusion furnace humidification requires a comprehensive set of measurements because even minute contaminants can precipitate at 1000 °C and ruin devices. The most fundamental parameter is resistivity or conductivity. Ultrapure water used for steam generation must exhibit resistivity above 18 MΩ·cm at 25 °C, corresponding to a conductivity below 0.056 µS/cm. Resistivity responds to ionic contamination; an increase indicates cation or anion breakthrough in ion exchange beds or CO₂ absorption. Operators also track total organic carbon (TOC), typically keeping it below 1 µg/L to ensure no carbon‑based residues deposit on wafers. Dissolved oxygen and carbon dioxide must remain below 10 µg/L because they influence dew point stability and may form microbubbles that disturb atomization. Silica content is a critical metric since silicate particles can deposit on wafer surfaces as crystalline “snow.” Total silica is usually controlled below 50 ng/L, and more stringent processes aim for less than 10 ng/L. Particle counts at 0.05 µm are monitored on‑line, with limits around 200 particles per litre to prevent mechanical defects in thin films. Non‑volatile residue (NVR) measures the total mass of contaminants left after evaporating a sample; values below 100 ng/L are typical. Trace metals such as iron, copper and sodium must remain under 1–10 ng/L, monitored by ICP‑MS. Ion chromatography analyses major anions like chloride, sulfate and ammonium, each kept below 50 ng/L. Bacterial contamination cannot be tolerated; limits are less than one colony forming unit (CFU) per 100 mL. Together, these parameters provide a complete picture of ionic, organic, particulate and microbial purity.

In addition to chemical purity, process engineers track thermophysical parameters. pH is maintained slightly acidic (5.5–7.0) because absorption of carbon dioxide shifts pure water from neutrality, and any buffering agents would introduce ions. Temperature influences resistivity and dew point; measurement compensation is necessary. Dew point itself is a direct measure of the humidity delivered to the furnace. Typical humidification ranges correspond to dew points between 10 °C and 40 °C in nitrogen streams, equating to moisture concentrations from approximately 100 ppm to 3 % by volume. Real‑time dew point analysers use chilled mirror or capacitance sensors to achieve ±0.2 °C accuracy. Flow rates of water injection and carrier gas determine mixing and are controlled using mass‑flow controllers with repeatability better than 1 %. Pressure drop across filters and membranes is monitored to detect fouling. In some fabs, dissolved hydrogen or other gases are measured because they can affect oxidation kinetics. Finally, oxidation rate itself is an indirect parameter influenced by humidity; ellipsometry or oxide thickness measurements after processing feed back into humidification control strategies. Maintaining all these parameters within narrow windows ensures that humidification contributes to uniform oxide growth without introducing new sources of contamination.

Design & Implementation Considerations

Designing a diffusion furnace humidification system for semiconductor manufacturing involves careful selection of materials and control architecture to maintain purity and stability. Quartz or high‑grade silicon carbide is commonly used for furnace tubes because these materials tolerate temperatures above 1100 °C without contaminating the wafers. The humidification line must be constructed from fluoropolymer tubing, such as perfluoroalkoxy (PFA), to prevent leaching of metals or particles; stainless steel may be used for downstream components but is passivated and electropolished to minimise corrosion. Engineers size the humidifier by analysing furnace load, desired oxidation rate and dew point range. Gas mixing manifolds require high‑precision mass‑flow controllers (MFCs) capable of delivering carrier gas at flows between 5 and 50 L/min with ±1 % accuracy. Water injection devices may use ultrasonic nebulisers, steam generators or membrane humidifiers. Nebulisers create an aerosol of micrometre droplets using piezoelectric elements, while steam generators boil ultrapure water under controlled conditions. The injection point is placed upstream of the furnace hot zone to allow mixing and heating, avoiding condensation on wafers. Instrumentation includes dew point sensors, resistivity probes and trace silica analysers connected to a distributed control system that logs data continuously.

Standards provide frameworks for design. SEMI F63 guides the selection of materials and components for ultrapure water systems, specifying leach limits and surface roughness. ISO 14644 standards classify cleanroom air quality, influencing the design of gas delivery lines and humidifier enclosures. National and international boiler codes may apply to steam generators, and ASTM D5127 outlines specification for high purity water used in electronics. Redundancy is built into the design to mitigate the risk of contamination; dual RO trains and parallel CEDI modules allow maintenance without shutting down humidification. Designing for cleanability is essential. Dead legs and crevices in piping must be eliminated to avoid stagnation and microbial growth. Automated sampling ports and calibration loops facilitate routine verification of sensors. Control systems incorporate interlocks to prevent water injection if resistivity drops below threshold or if dew point deviates beyond set limits. Integration with the furnace’s recipe management ensures the correct humidity profile for each process step. Capacity planning considers not just the current furnace but future expansions; modular designs allow additional humidifiers to be added without major reconfiguration. All these considerations converge to deliver a robust system that can reliably support high‑volume manufacturing.

Operation & Maintenance

Operating a diffusion furnace humidification system requires disciplined procedures and regular monitoring. Before a production run, operators verify that the water treatment skid is within specification. Ion exchange and CEDI modules are flushed until resistivity stabilises above the setpoint, which is commonly 18 MΩ·cm. Mass‑flow controllers are zeroed and calibrated to deliver the correct nitrogen and water flow rates. Dew point sensors are checked against reference hygrometers to ensure they read accurately. During operation, the control system continuously adjusts water injection to maintain the target dew point within ±0.2 °C. If dew point drifts, alarms prompt the operator to inspect for blockages or sensor fouling. Daily logs record resistivity, TOC, silica and particle counts; deviations trigger investigations. To avoid sudden condensation, ramp rates for humidity introduction are programmed carefully. After processing, the humidifier line is purged with dry nitrogen to remove residual moisture. This purge prevents corrosion and microbial growth in downtime.

Maintenance schedules are designed to preserve water purity and instrument accuracy. Cartridge filters upstream of RO units are replaced monthly to prevent membrane fouling. Reverse osmosis membranes are cleaned in place when differential pressure increases by more than 15 %. CEDI modules require feed pre-treatment and periodic flushing with high‑resistivity water; electrical performance is monitored to detect scaling. Ultrafiltration modules undergo backwashing or chemical cleaning to remove accumulated colloids. Degassing membranes are inspected quarterly for vacuum pump performance and membrane integrity. Steam generators or nebulisers are drained and cleaned to remove any residues; their heating elements are inspected for scaling. UV lamps in TOC oxidation units are replaced annually or when TOC levels rise unexpectedly. Sensors, including resistivity probes, dew point analyzers and flow meters, are calibrated at defined intervals – typically every six months – using certified standards. Calibration is crucial because measurement drift can lead to process deviations.

Operational teams must also maintain documentation. Procedures for startup, shutdown, cleaning and emergency response are documented and regularly reviewed. Operators receive training on handling ultrapure water systems and on recognising early signs of contamination. Spare parts inventories include critical items like O‑rings, filters and sensors to minimise downtime. In multi‑tool fabs, preventive maintenance is often synchronised across several humidifiers to reduce disruptions. The maintenance plan also addresses microbial control; hot water sanitisation or low‑level ozone dosing of storage tanks is conducted weekly. After sanitisation, system flushing ensures no oxidants remain that could attack downstream materials. By adhering to a structured operation and maintenance regime, facilities ensure that humidification remains a contributor to yield enhancement rather than a source of defects.

Challenges & Solutions

In diffusion furnace humidification, several practical challenges arise, each requiring targeted solutions. Problem: Silica precipitation, also called “steam snow,” occurs when dissolved silica exceeds solubility in the hot zone and deposits on wafers. Solution: A combination of RO, CEDI and silica‑specific ion exchange resins reduces dissolved silica below detection limits, and online silica monitors provide early warnings. Problem: Dew point drift can lead to non‑uniform oxide thickness across a batch. Solution: Closed‑loop control using high‑accuracy dew point sensors, coupled with real‑time adjustment of water injection via mass‑flow controllers, stabilises humidity within tight tolerances. Drift may also arise from sensor contamination, so regular calibration and installation of redundant sensors mitigate this risk. Problem: Microbial growth in storage tanks and piping can introduce organic contaminants that decompose at high temperatures to form particles. Solution: System design minimises dead legs and stagnation; periodic hot water sanitisation and ultraviolet treatment maintain a biologically inert environment, and sterile filters prevent bacterial ingress.

Another set of challenges relates to equipment reliability and integration. Problem: Reverse osmosis and CEDI modules can foul or scale due to upstream pre-treatment failures, leading to sudden drops in resistivity and process interruptions. Solution: Implement layered monitoring that includes differential pressure, conductivity before and after each unit, and predictive maintenance analytics to detect early signs of fouling. Installing redundant treatment trains allows one to be taken offline for cleaning without halting production. Problem: Interaction between humidification and dopant gases can cause unwanted reactions or corrosion in gas lines. Solution: Careful material selection, such as using nickel alloys or coated steel, and controlling dew point to avoid condensation of corrosive species, protect the hardware. When hydrophilic dopant gases are used, dynamic modelling helps anticipate reaction equilibria. Problem: Process recipes evolve rapidly, and a humidification system designed for one oxide thickness may not meet new requirements. Solution: Design flexibility through modular humidifiers, adjustable injection rates and software-configurable control schemes enables adaptation. Involving equipment suppliers in continuous improvement programmes allows custom solutions that keep pace with technology nodes. By systematically identifying problems and implementing robust solutions, fabs maintain high yields and protect their capital investment.

Advantages & Disadvantages

Humidifying diffusion furnaces using ultrapure steam or humidified nitrogen brings distinct benefits. By promoting rapid, uniform oxidation, steam allows thicker oxides to grow in a fraction of the time required by dry oxidation. The improved uniformity translates into tighter electrical characteristics across each wafer, critical for modern devices with billions of transistors. Humidification also reduces thermal budget because it lowers the oxidation temperature needed to achieve a given oxide thickness. Lower temperatures mitigate dopant diffusion and preserve junction depths. Clean steam minimises contamination and protects the quartz tube from corrosive dopant gases by diluting them. On the operations side, the ability to adjust dew point provides flexibility to fine‑tune oxidation rates for different device layers. In high‑volume manufacturing, these advantages yield increased throughput and reduced cost per wafer, making humidification an essential capability.

However, the technique is not without disadvantages. The capital cost of installing comprehensive water treatment and humidification systems can be significant, especially when adding distillation or vacuum degassing. Ongoing operation requires vigilant monitoring and maintenance to prevent contamination events. Humidifying gas flows introduces complexity in process recipes, requiring additional sensors and control logic. If not properly controlled, excess water vapour can condense on furnace walls or wafers, causing defects such as slip lines or nodules. Moreover, humidification may not be suitable for ultra‑thin gate oxides where even a slight increase in oxide thickness is undesirable; dry oxidation remains the method of choice in those cases. Balancing these pros and cons helps fabs decide when and how to deploy humidification to support their product mix.

Frequently Asked Questions

Question: Why is humidification preferred over dry oxidation for many semiconductor processes?

Answer: Humidification accelerates oxidation because water molecules diffuse through the silicon dioxide layer more rapidly than oxygen. This allows thicker oxides, such as field oxides or isolation layers, to grow at lower temperatures and shorter times. Lower thermal budgets protect doped junctions from unwanted diffusion, and the resulting oxide tends to have fewer microvoids. The increased growth rate also improves throughput in high‑volume fabs, making humidified oxidation more economical for many layers.

Question: How pure must the water be before converting it to steam?

Answer: The water must meet ultrapure water standards similar to those used in wafer rinsing. Typical resistivity is above 18 MΩ·cm, total organic carbon below 1 µg/L and silica below 50 ng/L. Particles, bacteria and metal ions are kept near detection limits. Any deviation can lead to precipitation at furnace temperatures, creating micro‑defects on wafers. Therefore, water is treated by reverse osmosis, electrodeionization, ultrafiltration and sometimes distillation before use.

Question: What instruments are essential for controlling diffusion furnace humidification?

Answer: Key instruments include online resistivity and conductivity probes to monitor water purity, dew point sensors to measure humidity in the gas stream, mass‑flow controllers for precise water and gas dosing and TOC analysers for organic monitoring. Additional devices such as silica analysers, particle counters and dissolved oxygen sensors provide comprehensive monitoring. All instruments feed into a control system that adjusts injection rates and triggers alarms when limits are exceeded.

Question: Can humidification be retrofit into existing diffusion furnaces?

Answer: Many older furnaces can be retrofitted with humidification modules, but space, control integration and materials compatibility must be considered. The humidifier needs a clean gas line, an injection mechanism and sensors tied into the furnace controller. Materials exposed to steam or humidified gases must withstand corrosion and high temperatures. Facilities also need to upgrade water treatment systems to supply the necessary purity. With careful engineering, retrofits are feasible and can improve performance of existing equipment.

Question: How is the dew point set for different oxidation processes?

Answer: The dew point, which corresponds to moisture content in the carrier gas, is selected based on oxide thickness and process recipe. A higher dew point increases oxidation rate but also risk of condensation. Engineers calculate the desired dew point using oxidation kinetics models and then program mass‑flow controllers to inject the appropriate amount of water. Dew point sensors provide feedback, and the system adjusts in real time to maintain the setpoint. Typical ranges are between 10 °C and 40 °C, but advanced processes may require tighter control or different ranges.

Question: Are there environmental or safety concerns associated with diffusion furnace humidification?

Answer: The primary safety considerations involve handling high‑temperature equipment and pressurised gases. Operators must ensure that humidifiers do not leak steam into cleanrooms or cause burns. Water treatment chemicals used upstream, such as acids for membrane cleaning, require proper handling and disposal. From an environmental perspective, water consumption is relatively low because humidifiers inject small volumes, but the treatment system may produce concentrate streams that need careful management. Implementing waste minimisation practices and adhering to safety protocols addresses these concerns.
